Emergency Communications in a Case

• Prices for NetworkInABox™  start from just $2400 USD

• $500 USD/month service management.

        This includes 6000 mins./month of voice calls Off-net             (World-wide calls to or from the network).

• Unlimited voice calls On-net (calls to other mobiles on the same network).

• Unlimited GPRS data use.

• 19” 2u Rack mount version available.

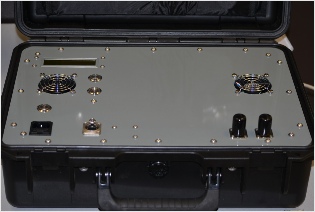

Hardware:

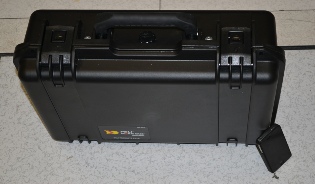

• High Impact resistant briefcase
• Water resistant when closed
• Crushproof case
• Briefcase will float if submersed whilst closed.
• Weight approximately 14 kg
• size 46 cm X 34 cm X 17 cm

General:

• Single TRX GSM/DCS1800 (1805-1880 MHz TX & 1710-1785 MHz RX).
• Maximum output power output 200mW (+23 dBm).
• GSM 05.05 Phase 2+ Compliant.
• Filtered a/c power inlet allowing it to be used directly from mains or generator (48V Battery option available at extra cost).
• 1 Ethernet RJ45 connector (connection to the Internet) different connectors are possible on request - dhcp is set as default.
• 2 N-type RF connectors (one receive antenna and one transmit antenna).
• RF Duplexer option available ( allows single antenna installation).
• 2 fans to ensure high availability. (Fan less operation possible).
• Fans start on insertion of power and speed is automatically adjusted depending on unit temperature.
• Separate Start and reset buttons.
• GSM service control button (On/Off).
• LCD provides information on system status.
• 150w Max. power consumption.
• Service Management (possible only when connected to the Internet).
• Network supervised by our NOC (Network Operations Centre).
• Management of the Network can be performed remotely.
• Remote access possible from the NOC in the event any troubleshooting is required.
• Reconfiguration can also be performed remotely - e.g. barring certain users or allowing certain users
• Software updates can be loaded remotely (via NOC).
• Full spares back-up and repair service available.
• Customisation and installation services available.
